Every building starts as a set of drawings. Floor plans show how space is laid out. Structural drawings show what holds it up. Builders, estimators, and facility managers all rely on them, yet most arrive as PDFs or images that software cannot search or measure.
AI can read these drawings and turn them into structured data: rooms, walls, openings, areas, and dimensions. Floor plan annotation and structural drawing annotation are the work that produces them. This post explains what the labels need to capture, where the difficulties lie, and why people who read drawings every day make the best annotators.

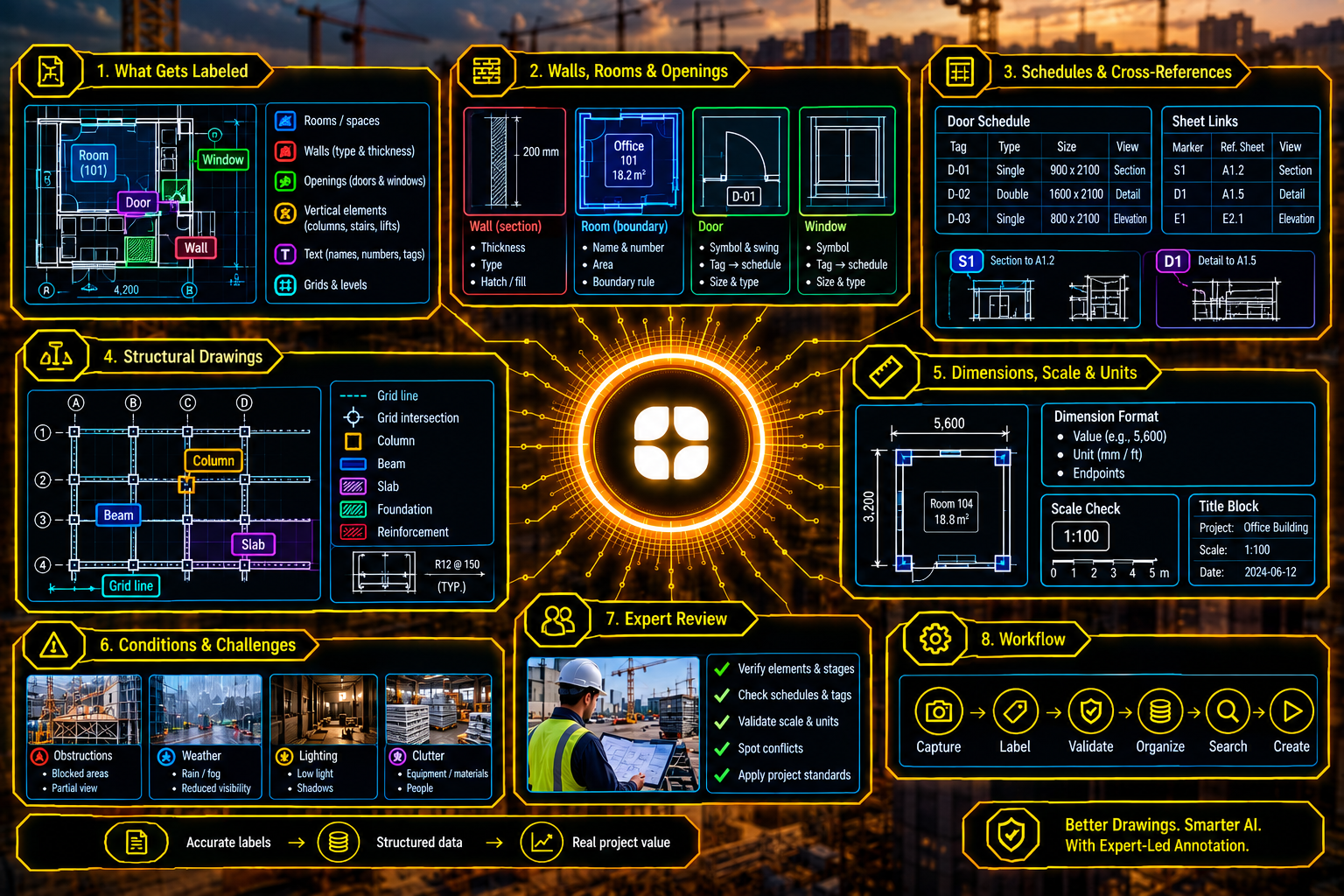

A typical project covers several kinds of elements:
Each element carries geometry (where it is and what shape it has) and meaning (what it is). A model needs both.
On a plan, a wall is usually drawn as a pair of parallel lines with a fill or hatch between them. The thickness, the fill pattern, and the line weight all say something about the wall: whether it carries load, whether it is a light partition, or what it is made of.
Annotators must decide how to represent a wall. Is it a centerline with a thickness value, or a closed shape following both faces? The choice changes every measurement that comes after. Guidelines should fix it, with examples.
Openings cut through walls, and the label must show where each one sits within its wall.
A room is a boundary with a name, a number, and an area. Where the boundary sits matters. Should it follow the inner face of the surrounding walls, or the wall centerlines? The two give different areas, and areas feed costs, fire planning, and space management.
Open-plan spaces have no wall to mark an edge, so the boundary must be defined by rule.
The text beside a room matters as much as the shape. The name, number, and any printed area must be linked to the correct room. A label attached to the neighbouring room is a quiet error that spreads through the data.
A door on a plan is a symbol with a swing arc and often a tag. That tag points to a row in a schedule, a table elsewhere on the sheet or in the set that lists the door's size, type, and finish.
The useful label is the link: this door symbol connects to that schedule row. Annotators must read the tag, find the matching row, and record the connection. They also need to label the table itself, cell by cell, so the information can be read by a model.
Plans carry dimensions, and reading them correctly is one of the most error-prone tasks. Strings of numbers run along walls, chain through rooms, and mix units. Some drawings show millimeters, some feet and inches, and some mix both.
Annotators label each dimension with its value, its unit, and the two points it measures between. They also need to know the drawing scale, which is normally stated in the title block or shown with a scale bar.
Printing and resizing can change the scale without changing the printed text. A plan stamped "1:100" may no longer be at 1:100 after a reduction. Good projects check scale against a known dimension and record the result. When a written dimension and the drawn length disagree, the annotator should flag the conflict. Settling it belongs to someone who knows the project.
Structural drawings use their own conventions. Grid lines form a reference frame. Columns carry marks and tags. Beams are labeled with member sizes. Foundations, slabs, and walls carry notes about thickness and reinforcement.
Construction drawing data extraction here means labeling each element, reading its tag, and linking it to the schedule or detail that defines it. Reinforcement notation is compact and packed with meaning. An annotator who has never read it will mistake a callout for an ordinary note.
A drawing set is a web of references. A circle on a plan marks a section cut. A callout points to a detail on another sheet. A level marker ties one floor to the next.
Labels should capture these links: which marker points to which sheet and which view. Without them, a model sees isolated pages. With them, it can follow a wall from the plan to its section to its detail.
Architectural and structural drawings of the same building sometimes disagree. A column may sit in a different position, or a wall may be thicker on one set than the other.
Annotators should not resolve these differences. They should record what each drawing says and flag the mismatch for review by someone with project knowledge.
People who read drawings for a living, such as architects, structural engineers, and quantity surveyors, see more in a sheet than a general labeler does. They know what a wall hatch means, how a schedule links to a plan, and why a scale check is worth doing. They can tell when two drawings disagree for a good reason.
They also write the rules that keep a large team consistent: the wall and room conventions, the dimension format, and the link types. This matches Globik's approach of using verified domain experts for work that depends on judgment. For architectural drawing AI training data, that reading experience is what separates usable geometry from a pile of lines.
Before a drawing project starts, a team can settle five things:
Drawing AI works when labels capture geometry and meaning, tie tags to schedules, check scale, and flag conflicts instead of hiding them. For another view of how a project's plan meets the real site, see our guide on construction site progress imagery annotation: labeling work stages against the plan. Strong floor plan annotation depends on people who read drawings every day.
It is the labeling of rooms, walls, openings, and dimensions on building plans so AI can read them as structured data.
Whether a wall is a centerline or a closed shape changes every area and length calculated from it.
The schedule row holds the size and type, so the link connects a symbol to its real details.
Printing and resizing can change the scale, so measurements need confirming against a known dimension.
Architectural and structural sets can disagree, and a person with project knowledge should decide which is right.
